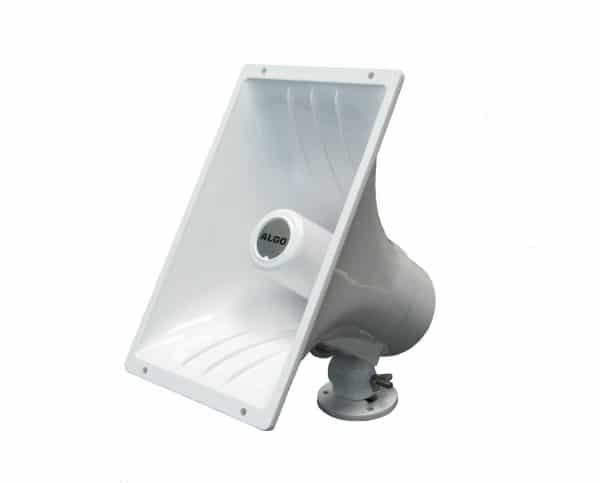

1186 Analog Horn Speaker

Analog Horn Speaker for Loud Ringing, Voice Paging & Emergency Alerting

The Algo 1186 Analog Horn Speaker is an accessory for the 8180 IP Audio Alerter. The analog horn speaker is particularly useful when additional volume is required or the application is outdoors. For example, a workplace which is expansive (i.e., warehouse) or where hearing protection is worn and/or ambient noise levels are high.

Data Sheet

ALGO Overview

Description

  • Outdoor rated 8 ohm horn speaker accessory for the 8180 IP Audio Alerter.
  • Telephone loud ringing, voice paging and alerting.
  • Excellent audio performance for intelligibility and clarity of voice page / public address (PA) announcements.
  • UV stabilized impact resistant plastic for outdoor use.
  • Constructed using corrosion resistant stainless steel base materials.
  • Three-axis adjustable with two large ergonomic T-knobs enables precise aiming regardless of mounting position.
  • Powered by 8180 or 1825PM products.
  • Ideal for manufacturing plant / factory, utility, warehouse, machine shop, garage, yard, farm, and parking lot environments.
  • Product dimensions: 11.8″ x 6.6″ x 10.2″ (30cm x 16.8cm x 25.8cm)

The 1186 is the recommended horn speaker accessory for the Algo 8180 and 1825PM products. Note: As an alternative to the 8180+1186 combination, the 8186 SIP Horn Speaker is available as an all-in-one SIP and PoE endpoint. The 8186 will provide the same performance as the 8180+1186 and is outdoor rated.

Features

  • Analog 8 ohm speaker.
  • UV stabilized impact resistant plastic for outdoor use.
  • Constructed using corrosion resistant stainless steel base materials.
  • Three-axis adjustable with two large ergonomic T-knobs enables precise aiming regardless of mounting position.
  • Interfaces easily with the 8180 to provide increased loud ringing or voice paging volume.
  • No power supply required – draws power from the 8180 or 1825PM.
  • Dimensions: 11.8″ x 6.6″ x 10.2″ (30cm x 16.8cm x 25.8cm)
